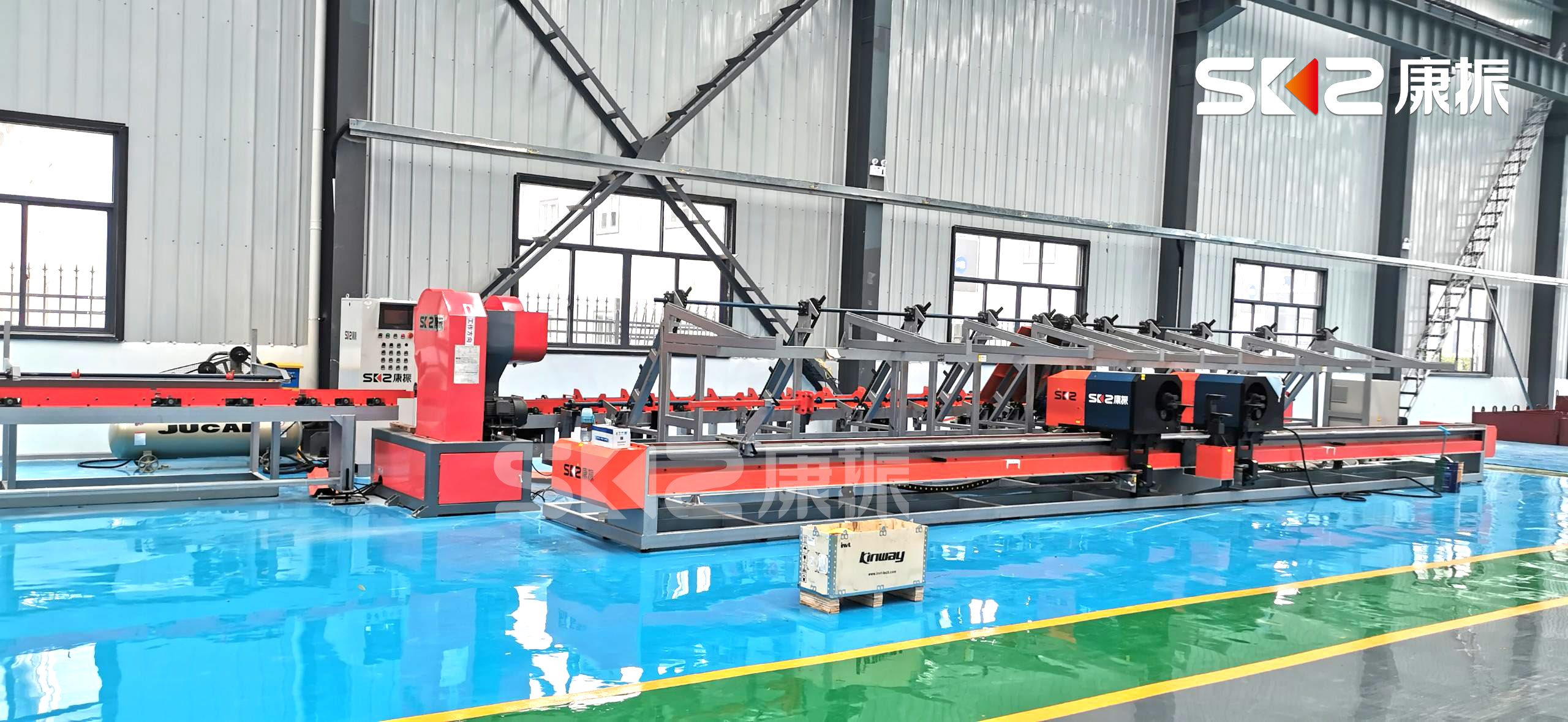

This production line is a perfect combination of rebar shearing line and rebar bending center
An integrated equipment with the function of both shearing and bending
It realizes lean manufacturing of rebar processing
Space saving: no space required for cut-to-size rebar, the combined machine covers an area of 120㎡
Save labor: the machine is with direct consignment, save the labor for lifting and carrying
Improved efficiency: process the raw material into semi-finished bends with minimum duration
guaranteed quality: the working procedure is closely connected, enables to detect abnormal conditions and correct it without delay
Easy operation: equipped with humanized running program and modularized setting. easy to operate
Only one person is required to achieve the cutting and bending of straight steel bars
Fully automatic feeding, reducing the labor intensity of workers
From the shearing of the steel to the bending, the assembly line operation, without the need of steel storage equipment, the bending process can be realized immediately.
Save space and greatly increase production efficiency
INTEGRATED REBAR CUTTING & BENDING MACHINE
| Model | KQW32BX | |||||||||||||||||||
| Max Shear Foree (KN) | 1750 | |||||||||||||||||||
Moving speed(m/min) | ≤60 | |||||||||||||||||||
| Cutting Langth (mm) | Manual | 500-11900 | ||||||||||||||||||
| Automatic | 1500-11400 2100-12000 | |||||||||||||||||||
| Culling Capacity | Diameter(mm) | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 32 | 36 | 40 | |||||||
Rebar Qty.(Pcs) | 15 | 12 | 11 | 9 | 8 | 7 | 7 | 5 | 4 | 3 | 2 | 2 | ||||||||
| Average Pewer Consumption (KW/h) | 25 | |||||||||||||||||||
| Max Bending Angle (°) | (φ10-φ28) +180 -100 (φ32) +90 -90 | |||||||||||||||||||
| Max Bending Size (mm) | 10500 | |||||||||||||||||||
| Min Bending Size (mm) | 90 | |||||||||||||||||||
| Min Bending Size Length (mm) | (φ10),(630) (φ25),(650) | |||||||||||||||||||
| Length Tolerance (mm) | ±2 | |||||||||||||||||||
| Bending Tolerance (°) | ±1 | |||||||||||||||||||
| Speed Control | CNC Servo control | |||||||||||||||||||
| Labeled elechic Power (kw) | 14 | |||||||||||||||||||
| Moving Speed(m/min) | 30-60 | |||||||||||||||||||
| Bending Speed (°/s) | 65 | |||||||||||||||||||
| Cylinder Pressure (Mpa) | 0.6 | |||||||||||||||||||
| Bending capacity | Diameter (mm) | 10 | 12 | 14 | 16 | 20 | 22 | 25 | 28 | 32 | ||||||||||
Rebar Qty.(Pcs) | 6 | 5 | 4 | 3 | 3 | 2 | 2 | 1 | 1 | |||||||||||
| Weightlkg) | 4500 | |||||||||||||||||||
